BIM
FACING THE BUILDING FROM THE FACADE TO THE ROOF
NAME:
DIPL. ING. VLADIMIR KABAT, MRIAI
PROFESSION: REGISTERED ARCHITECT
REGISTER OF ROYAL INSTITUTE OF
THE ARCHITECTS OF
IRELAND RER.NO.18125
COMPANY REVELIA LTD OWNER
Bim hero community member with arc-dox
BIM COORDINATORS
SUMMIT dublin
2023-2024-2025
-The Facade
-The Roof
-BIM COAT
Use the space between your mind first not the vacuum between mobile AI / last calls for human-based logical cogitating
Architecture and engineering facing the high speed technology acceleration
The roof and the envelope closing internal space and are real skin to breath. Defines live time, represents durability and demonstrate fashion attractIon
Coopers cross dublin
– High intelligence building been used for analyses
– As built outputs are next data for the building manuals
– Models captures reality at the highest lod
– As built outputs are next data for the building manuals
– Models captures reality at the highest lod
Coopers cross dublin
FACADE BIM MODELS
Coopers cross dublin
Faced BIM Models
Coopers cross dublin
FACADE BIM MODELS
Coopers cross dublin

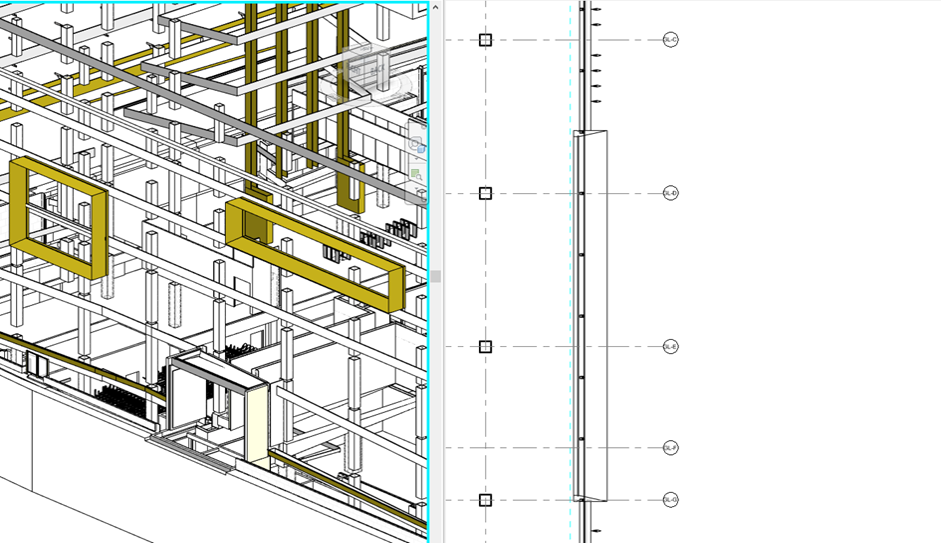

BIM Detals
How to change the directions
Facing detailed design National Rehabilitation Centre in Dublin 2018
- The AEC Autodesk collection 2025 gives you confident design projected to full views
- All parameter are related to parameters and component properties
- The models guarantie livetime use projected to building manuals
How to change the directions
Closing procedures – as built project
-CONNECTION DETILS – MEETING THE PERRIMETER ON PARRAPET
-MEETING MOST OF SUB-contractor issues in one location
-The over-lay method of checking differences
-Initial Research how to find first the most up-to-date design
-
Higher standard Industrial buildingNTCC – National Train Coordination Centre Dublin HUESTON Station
Building control units gives more ideas how to use the BIM models for the building owner
Higher standard Industrial buildingNTCC – National Train Coordination Centre Dublin HUESTON Station
BIM Detail Based Project LOD 6
